BIM SECTORS

Industrial Sector

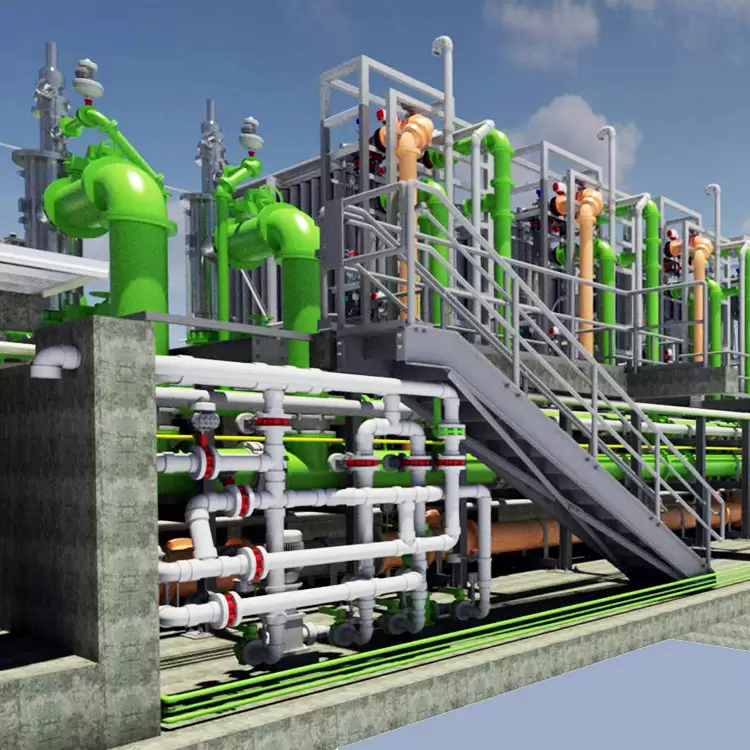

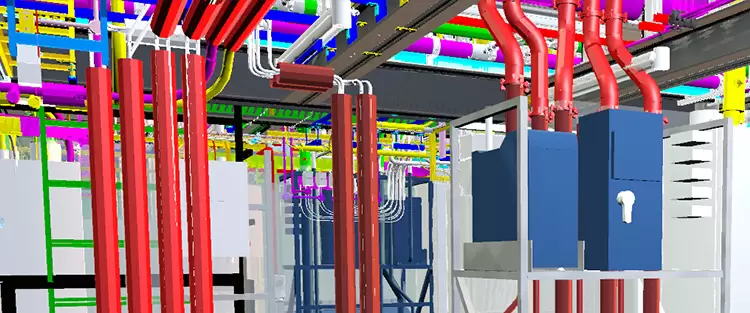

We helpĀ industrial organizations utilize the latest Building Information Modeling (BIM) tools for all of their design, fabrication and erection in a timely and cost-effective manner. Our unique workflows and techniques ensure a return on investment to our clients in their project executions. We collaborate with the clients, designers and material producers with the goal of achieving the best possible solution.

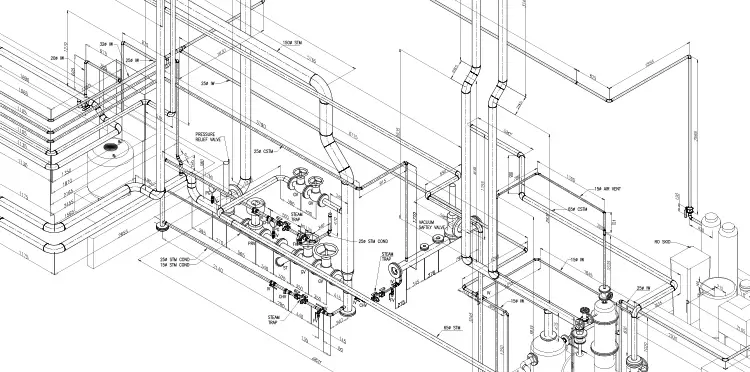

Apart from shop drawing and spool drawings, we also provide auxiliary services as procurement BIM and quantity take-offs enabling the clients to plan their budget ahead and reduce wastage. We also offer point cloud modeling for As-built documentation of existing plants and equipment. We offer Industrial engineering services for Power plants, Water treatment plants, Pipe racks, Vacuum Distillation Unit, Refineries etc.

Our basket of solution for Industrial organizations:

  • P & I diagram
  • BIM object creation
  • GA & Equipment Layout drawings
  • Structural Frame arrangement
  • Process Schematic Diagram

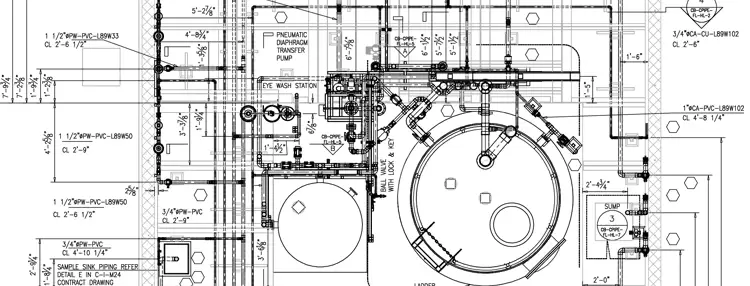

  • Process Piping drawings
