Steel Detailing Case Study – Residential House, USA

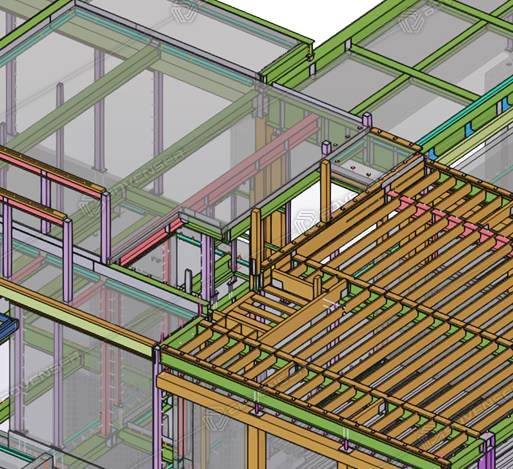

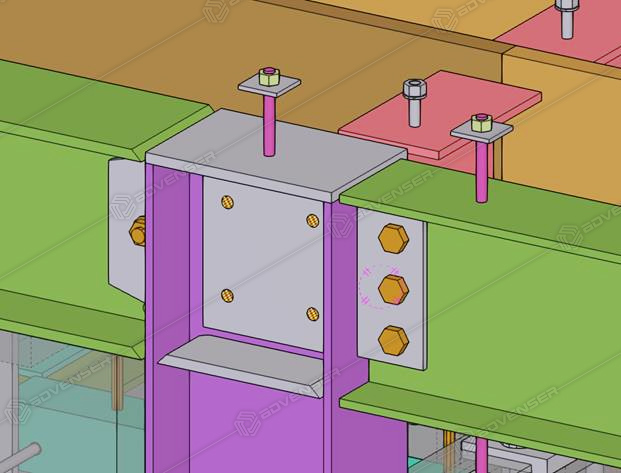

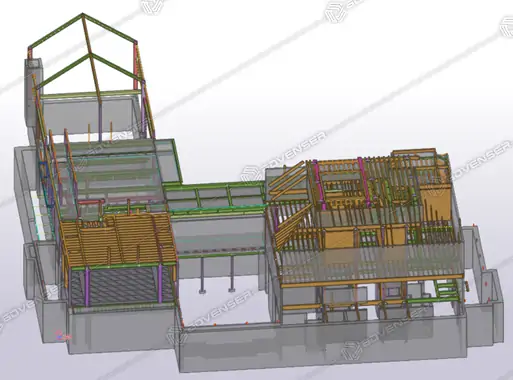

The project encompassed the structural design of sloped truss members utilizing a combination of wood and steel materials. The detailing scope included framing steel structures for the basement floor, roof, ceiling, roof attachments, decking, stairs, and railings.Advenser was entrusted with developing a comprehensive 3D structural steel model in Tekla Structures, incorporating primary steel, embedded components, and miscellaneous steel elements. The scope also included the generation of detailed drawings and reports to facilitate the steel structure's construction.All models and drawings were meticulously prepared in adherence to AISC, AWS, and OSHA standards, referencing structural and architectural design documents. The project deliverables comprised erection drawings, fabrication drawings, single-part drawings, and various reports, including ABM, BOM, NC files, KISS files, bolt lists, stud lists, and DXF files
