MEP BIM Case Study – Pumping Station, USA
Project Information
Sector:
Industrial
Project Type:
Pumping Station
Location:
USA
Deliverables:
Equipment Families, BIM 360 Model, Material Rendering.
Services:
Mechanical, Electrical, Plumbing, Architectural & Structural.
Software:
Trimble Scan Explorer, Recap, Revit, BIM360
Our scope of services
Lardner’s Point Pumping Station (LPPS) is the largest finished water pumping station in the City of Philadelphia, conveying over 30% of the water consumed by the city on an average day. Our scope of work was to model the ducts, process mechanical pipes, electrical and plumbing systems from point cloud data. The scope also encompasses the creation of equipment families such as pumps, valves, panels and uploading to BIM360. The design inputs were in point cloud data. Point cloud modeling and analysis were done in Revit using Recap and Trimble Scan Explorer. Modeling in BIM360 made it easier to receive the appropriate markups and comments and examine the model from the customer in real time.

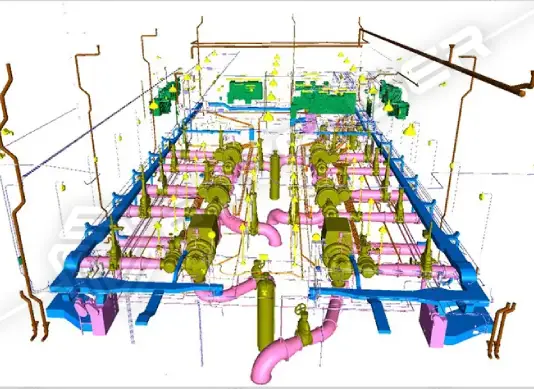

Project Models
