Industrial BIM Case Study – Press Line Project, Germany
Project Information
Sector:
Industrial
Project Type:
Pressline
Location:
Germany
Deliverables:
STEP & DWG models
Comparison of Existing vs Final 3D Model
Services:
Point Cloud to 3D Modeling and 3D Model Comparison
Software:
AutoCAD & Leica Cyclone
Our scope of services
To develop a detailed 3D model of the facility using the RCP (Registered Point Cloud) data provided, incorporating all mechanical, structural, and electrical elements. The scope also includes a comprehensive comparison between the existing 3D model and the final developed 3D model to identify deviations or changes.

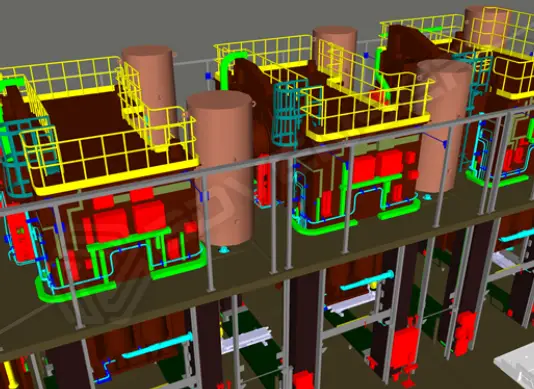

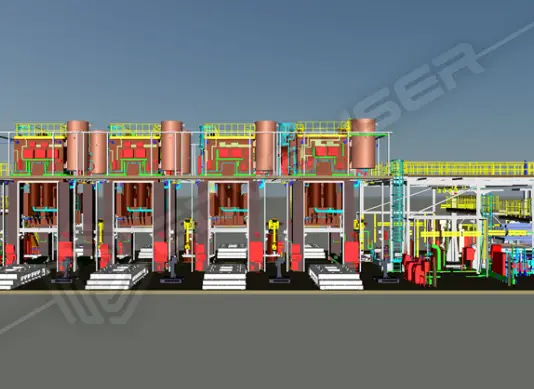

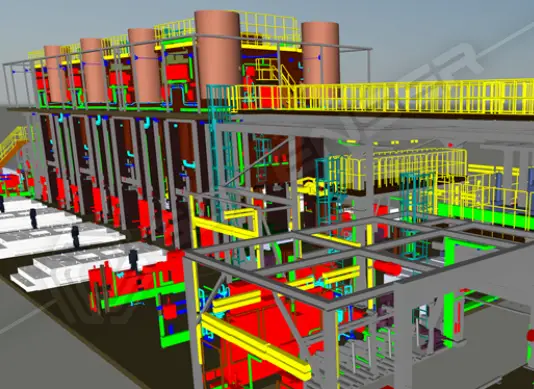

Project Models
