Architectural BIM Case Study – Ware House Project, USA
Project Information
Sector:
Industrial
Project Type:
Warehouse
Location:
USA
Deliverables:
LOD 300 Revit Model
Drawings in CAD/PDF
Services:
LOD 300 Revit model (Architectural & Structural) of the building from point cloud and Equipment modeling (LOD 200)
Software:
Revit, Recap, AutoCAD
Our scope of services

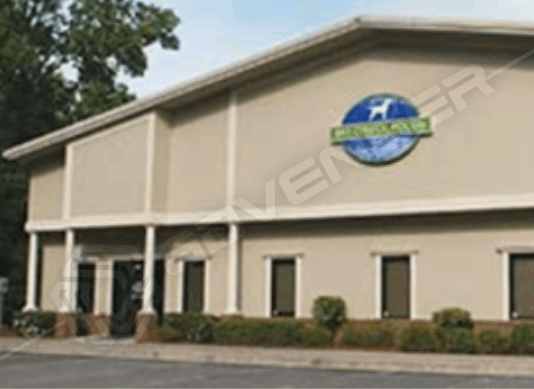

Big Creek Foods Ware House with an area of 10,000 S.F, situated in Gainesville, Georgia, create customized turnkey pet programs, capable of producing and packaging a broad range of food products.
Our scope of work included Architectural, Structural, Mep Modeling in LOD 300 and Equipment modeling in LOD 200.

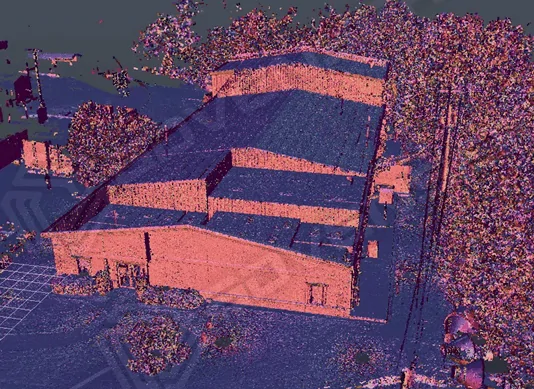

We have developed the model from the received Point Cloud files. Our deliverables were LOD 300 Revit Model.
Project Models
