MEP BIM Case Study – Residential & Commercial Building, USA

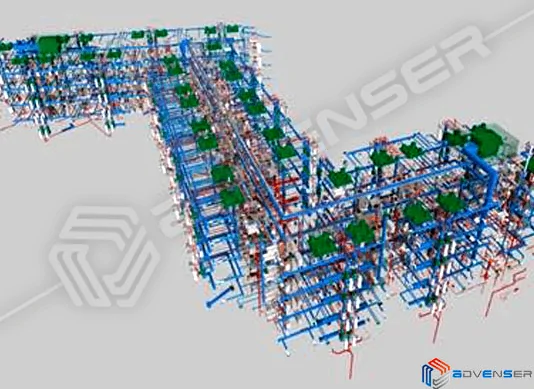

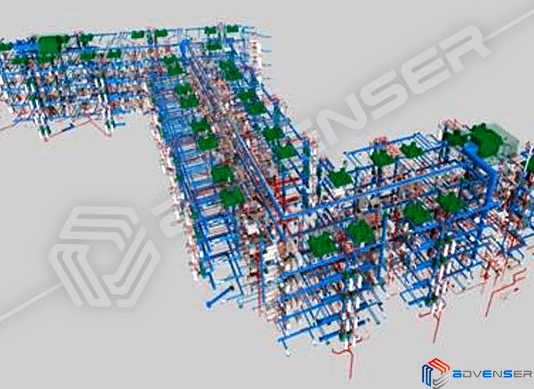

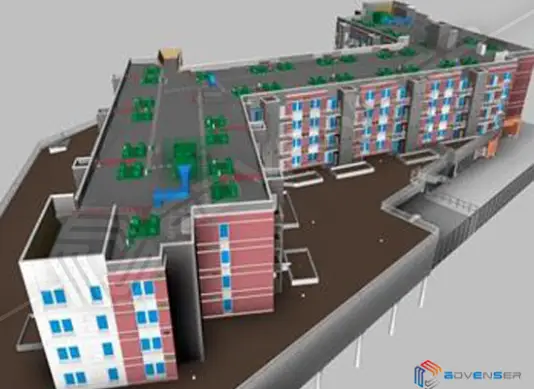

This construction project involved a 150,000 sq. ft. residential and commercial building including 140 multi-family dwelling units with 15% MPDUs as well as 7,000 square feet of retail space along the Arlington Road property frontage. Advenser’s scope of services in the project consisted of modeling, clash detection and preparation of coordinated drawings for all architectural, structural, mechanical, plumbing and electrical components for all floors of the building. The design drawings for all trades were furnished as inputs in both cad and pdf format using which Advenser created a coordinated architectural & structural 3D model as the initial phase which was then used for MEP modeling which formed the second phase
