Architectural BIM Case Study – Healthcare Center Project, USA
Project Information
Sector:
Healthcare
Project Type:
Healthcare Building
Location:
USA
Deliverables:
LOD 300 model
Services:
Dry Wall framing and Ceiling framing
Software:
Revit, Navisworks
Our scope of services
The Project is a New Construction of Healthcare center where we have modeled and placed the dry wall framing members and ceiling framing members for co-ordination purposes. It is a LOD 300 model which includes such as Studs, Tracks and bracings support system. The Wall framing system are placed in certain Architectural standards.

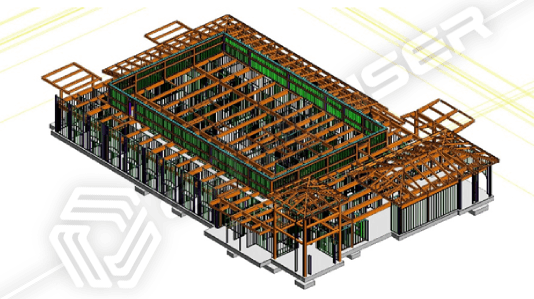

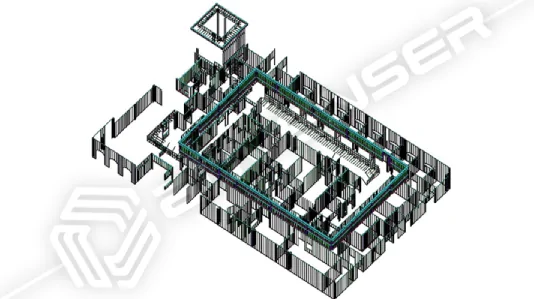

Project Models
