Facade Detailing Case Study – Commercial Infrastructure – Office Facility, USA

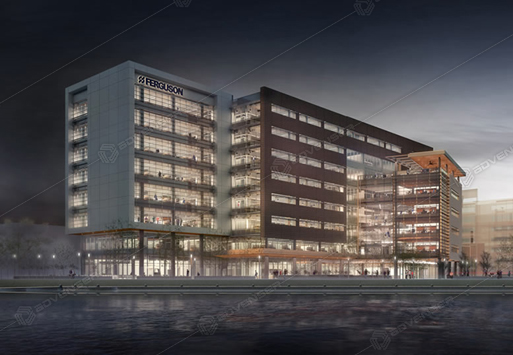

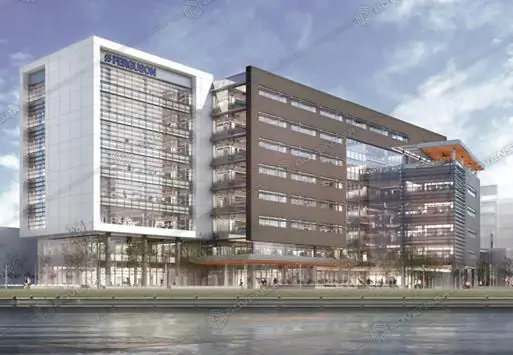

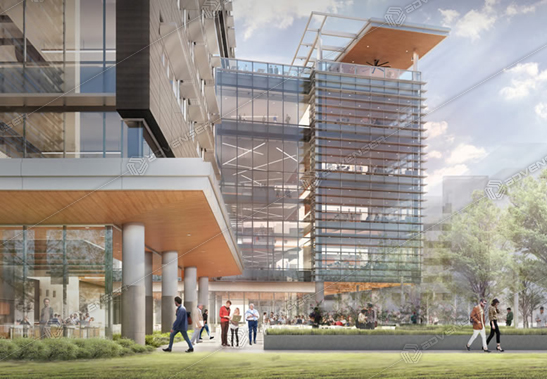

Ferguson Enterprises Headquarters is the corporate hub for the largest U.S. supplier of plumbing, heating, air conditioning, and other appliances.Advenser’s involvement in this project centered on the development of detailed shop drawings using AutoCAD. The façade system utilized captured and structural glazed curtainwall and storefront systems, along with doors, designed to meet both aesthetic and functional requirements.The project presented coordination challenges due to the number of interconnected and angled frames. Additionally, provisions for sunshade installations were included, requiring careful detailing for future integration by others. Custom anchors were also required to ensure stability and alignment with the building’s unique design. Advenser worked meticulously to address these challenges, delivering precise drawings that met the project’s complex specifications
