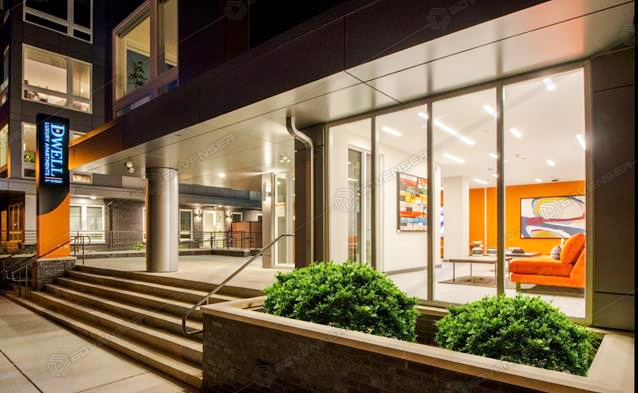

Structural Detailing Case Study – Mixed-use Building, USA

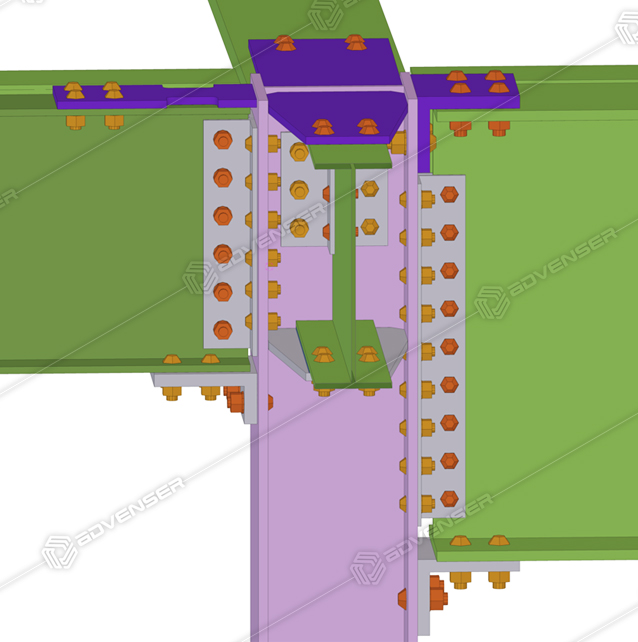

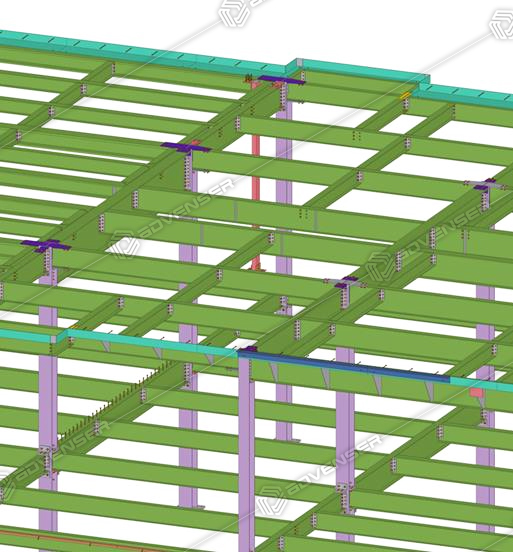

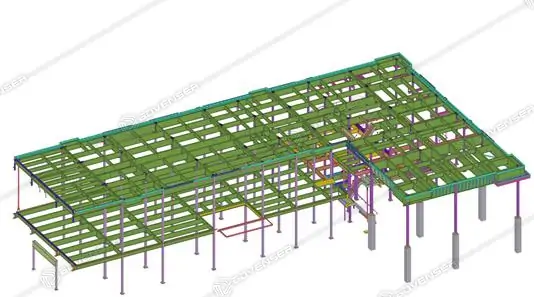

Steel team was assigned with both main steel and miscellaneous steel detailing for the project, which involved a complex and heavy structure. The design featured massive beams of varying profiles, each connecting to a central column in four directions with moment connections. This posed a significant challenge, as the bolted connections often led to bolt clashes due to the varying beam depths. Our team worked diligently to resolve these clashes, ensuring erection feasibility on-site. Additionally, we collaborated closely with structural engineers and Architect and the EOR to convey the challenges and secure their understanding and approval to proceed effectively.Advenser also provided design calculations, with the design team delivering excellent results in this regard. Our scope of work included developing a detailed 3D structural steel model using Tekla Structures, incorporating all primary and miscellaneous steel elements. Comprehensive drawings and reports were generated to support the construction of the steel structure, adhering to AISC, AWS, and OSHA standards. Deliverables encompassed erection drawings, fabrication drawings, and single-part drawings, along with Tekla-generated reports such as ABM, BOM, NC files, KISS files, bolt lists, stud lists, and DXF files to facilitate seamless construction workflows.
