Architectural BIM Case Study – BIM Content Creation

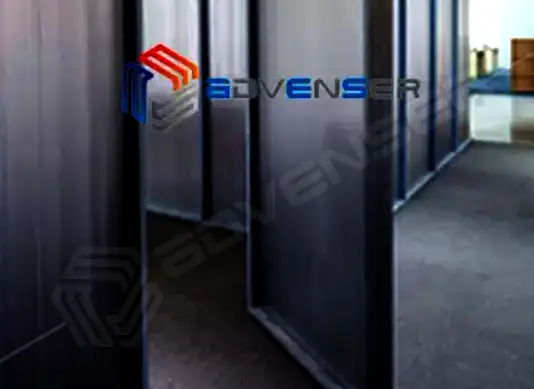

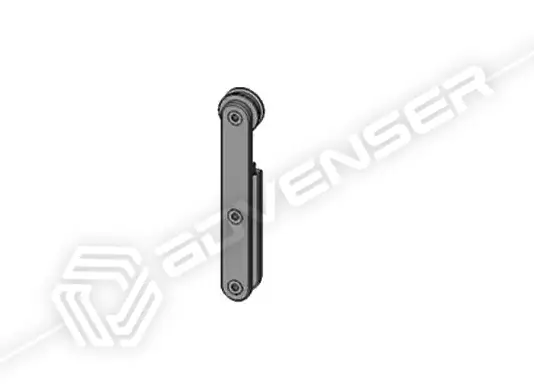

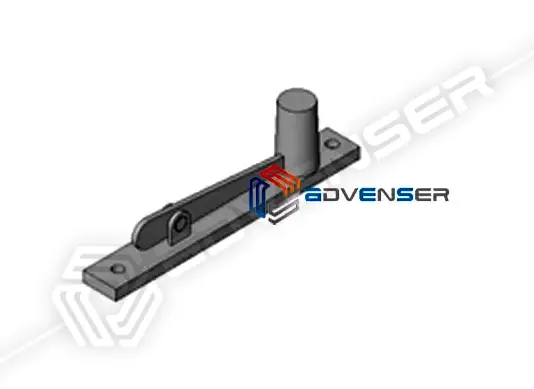

The scope included frameless doors and doors with frames. All the doors were provided with a weight borne at the header or on the floor. The most tedious task was dealing with the hardware components, every single tiny fragment had to be modeled so that the shop drawing extraction can be precise and the hardware components were finally nested to the main family. The hardware finish and the width & height parameters were customized as per the client’s requirement. Advenser successfully delivered Revit model for commercial purpose.
