Structural & Site Modeling for Commercial Mall, Dubai
Project Information
SECTOR:
Commercial
PROJECT TYPE:
Public Commercial Mall
LOCATION:
UAE
DELIVERABLES:
LOD 400 Model & Shop Drawings, LOD 500 Model & As-Built Drawings
SOFTWARE:
Revit & AutoCAD
SERVICES:
Structural Elements Modeling, Site Work Modeling & Drawings, GA & Excavation Detailed Drawings
Scope of Work

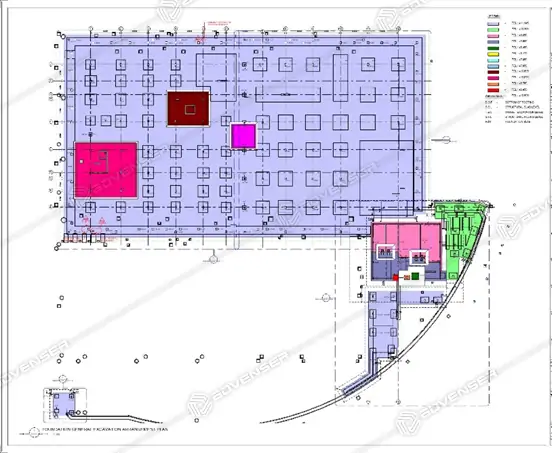

Provided structural and site modeling services for a public commercial mall at NASSL SHEBA, Dubai. Developed LOD 300 models progressing to LOD 400 shop drawings and LOD 500 as-built models. The scope covered general arrangement drawings, excavation plans, and DEWA trench drawings, delivering coordinated and construction-ready outputs aligned with site and authority requirements.
